CE Certified High pressurized Split System Solar Flat Panel

CE Certified High pressurized Split System Solar Flat Panel

CE Certified High pressurized Split System Solar Flat Panel
CategoriesIntegrated Unpressurized Solar Water Heater
AlbumView larger image
BrandInlightsolar
ModelILF Series
TypeFlat-Plate
PressurePressurized
Circulation TypeIndirect / Closed Loop (Active)
Heating SystemThermosyphon (Passive)
Connection TypeSplit
InstallationFreestanding
Housing MaterialColor steel plate / Stainless steel
CertificationCE, ISO9001:2008
Capacity300
Coating of collectorBlack Chrome
Copper coilAll red copper 12 * 1.0mm
Tank shellColor steel plate / Stainless steel
AccessoriesWorkstation, Electrical heater, Magnesium rods, T P valve
Water output45~95oC
ApplicationHome, rest room, extremely cold area
AdvantagesSafe, stable and reliable
Unit PriceUS $ 200-800 / set
Update Time2019-06-19
Detail Information

Solar Flat Panel  Technical Parameters



    Flat  Plate

 Solar Collector

 Spec. (mm)

  2000*1060*70    2000*1060*80    2000*1060*90

 Cover Glass

  Tempered/ Tempered woven / tempered low-iron woven glass

 Coating

  Black Chrome

 Core

  All red copper core & pipes

 Insulation

  Glass wool + benzene plate/ Glass wool + polyurethane foam

   Water tank

 Capacity

  100L/ 120L/ 150L/ 200L/ 250L/ 300L/ 400L/ 500L

 Inner tank

   Food-grade stainless steel SUS304-2B

 Copper coil

   All red copper Φ12 X 1.0mm

 Insulation

   Imported polyurethane integrated foam-forming 50mm

 Tank shell

   Color steel plate / Stainless steel

     Bracket

 Spec.(mm)

  1.2 ~ 1.5mm in thickness

 Material

   Hot-dip galvanized steel / Stainless steel / Aluminium alloy

  Accessories

 Workstation, Electrical heater, Magnesium rods, T&P valve

    Pressure

 7 bar

    Tilt angle

 0°~ 90°

  Water output

 45~95oC





Solar Flat Panel Features description

Split System Solar Flat Panel composes of flat plate solar collector, storage water tank, workstation system and interconnecting pieces.



Flat Plate Solar Collector:

1) Copper core and pipes in flat plate as heat exchanger, with a quick startup and super efficiency.

2) Three high-tech methods of coating (Selective coating / Black chrome / Titanium-Nitride-Oxide) to meet your upper needs

3) Ultrasonic technology ensures seamless jointing of copper core and pipes

4) Modularized collector, arbitrary combination with architectural structure, adaptable to either slope or flat roof, little maintenance needed



Pressurized Water Tank

1) Inner water tank: Food-grade stainless steel SUS304-2B as inner tank keeps the water clean and drinkable, automatic argon-arc welding technics ensures long lifespan (15 years) with good pressure bearing.

2) Water tank shell: Color steel plate much durable and appealing. Stainless steel shell makes it a choice for higher requirements.

3) Insulation Layer: Germany-imported polyurethane integrated foam-forming with twice slaking treatment, preserves hot water constantly

4) Pressurized water tank with super hydraulic bearing pressure makes your life more comfortable

5) Copper coil could be installed inside water tank for twice hear exchange efficiently, one more copper coil installed could be connected with radiator or other devices for house heating or connected with other heating devices such as gas to assist solar water heating.



Workstation System:

1) An integrated system composes of intelligent controller, circulating pump, flow meter, relief valve, pressure gauge, expansion vessel, check valve

2) More intelligent operation, when temperature discrepancy between collector and water tank reaches set value, the controller shall start the circulation pump automatically for heat exchange to raise the water temperature in storage tank



Accessories:

1)  Electrical heater, as an auxiliary heating element in case of raining or snowing so as to supply hot water continuously

2)  Magnesium rods, soften hard water so as to protect system from water scale effectively



Warranty: Three-year international responsibility for integrated system and 15 years for vacuum tubes due to original quality problems

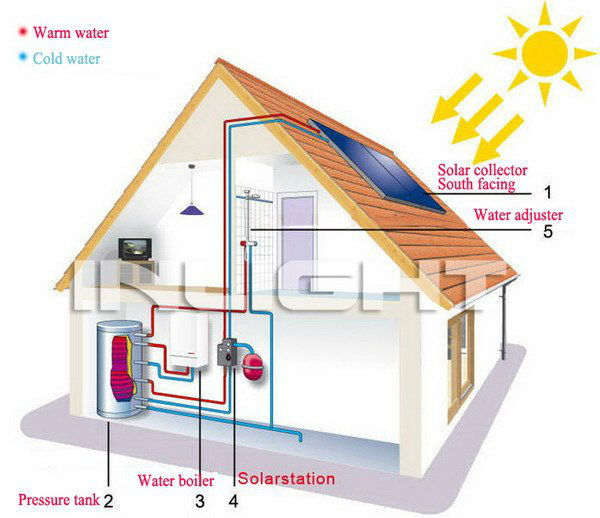

Solar Flat Panel  Working Theory:

INLIGHT split flat panel solar water heater is a kind of closed-loop solar system with heat exchanger in pressurized storage tank. The system circulates heat-transfer fluids (usually a glycol-water antifreeze mixture) between the panel collector and heat exchanger to release heat to the water in storage tank. This kind of solar systems are most popular in areas subject to extended subzero temperatures because they offer good freeze protection.



Advantages:

1. High efficiency, rapid water heating. INLIGHT flat panel collector for solar collecting, with a super heating efficiency.
2. The whole system is pressurized and intelligent and works under high temperature and pressure automatically.
3.  The design of pressurized storage tank is reasonable and scientific, which could hold 100,000 times fatigue test without any damage, also the tank can be equipped with anode magnesium and backup heating device to assist solar water heating.
4.  Split modularized structure, collector installation is much more easy and adaptable to different roof structures. The storage tank is placed inside house so that the load bearing consideration of house roof can be neglected.
5.  Almost maintenance free system works automatically which is safe, stable and reliable.

6. System can be used in extremely cold area with anti-freezing fluids as heat-transfer medium.
