Metal Glass Heat Pipe Solar Collector

Metal Glass Heat Pipe Solar Collector

Metal Glass Heat Pipe Solar Collector
CategoriesHeat Pipe Solar Collector
AlbumView larger image
BrandInlightsolar
ModelILMC-70/1900B-20
TypePressurized
ApplicationSolar Thermal
Pipe MaterialGlass
Manifold ShellBlack Aluminum Alloy
Copper Pipe8mm copper pipe and 24mm condensor
Unit PriceUS $ 285-950 / set
Update Time2019-10-14
Detail Information



Specification : Metal-Glass heat pipe solar collector

1. Glass Tube : material is borosillicate glass 3.3 ,  Thickness is 2.0mm , Transmittance : 92%

2. Manifold Shell : frosted Aluminum Alloy (Grey or Brack painting ) , Max working pressure 6 bar

3. Max Stagnation Temperature : 250 degree ,  Max Working Pressure : 6 bar

4. Copper Pipe:Φ8mm copper pipe  and Φ24mm condensor.

5. Insulation : rock wool , 50mm thickness, 180kg / m³,    Dimension : Φ100mm * 1500mm

6. High anti-frozen at - 50 degree, the bracket can free standing on flat rooftop or lying on the sloping rooftop .

7. Hail Resistance:Φ 35mm

8. Vacuum Grade: 10-8 bar


Item NumberTube Nos.Tube Size
(mm)
Apeture Area
(m²)
Collector Size
L*W (mm)
Container Loading Sets
20GP40GP40HQ
ILMC-70/1900B-1010Φ70*19001.621140*199090180200
ILMC-70/1900B-2020Φ70*19003.292140*19904590105
ILMC-70/1900B-3030Φ70*19004.863140*1990275870

Item NumberTube Nos.Tube Size
(mm)
Apeture Area
(m²)
Collector Size
L*W (mm)
Container Loading Sets
20GP40GP40HQ
ILMC-70/1700A-1010Φ70*17001.451140*179090180227
ILMC-70/1700A-2020Φ70*17002.92140*17904793117
ILMC-70/1700A-3030Φ70*17004.353140*1790316379

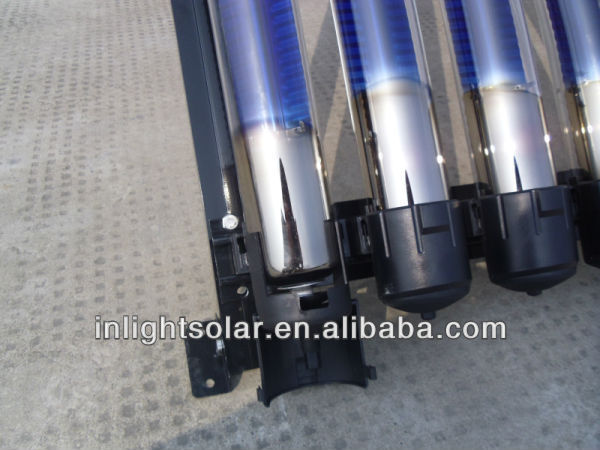

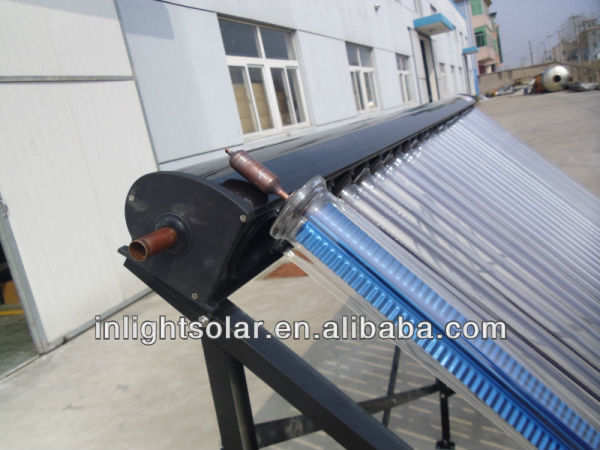

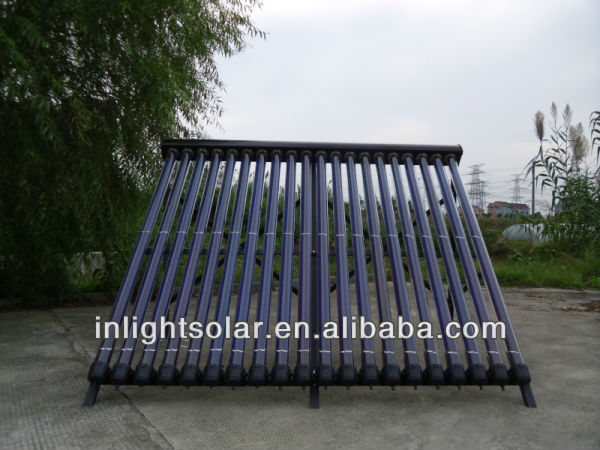

Metal Glass Heat Pipe Solar Collector
