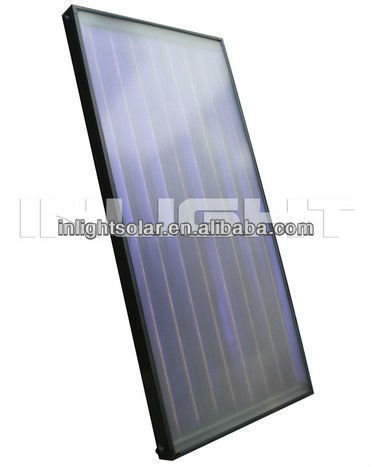

High Heat Efficient Flat Plate Solar Panel Solar Thermal Collector
|Categories||Flat Plate Solar Collector|
|Album||View larger image|
|Collector type||Flat plate solar panel|
|Coating||High selective titanium|
|Working pressure||6 bar (0.6MPa)|
|Unit Price||US $ 150-300 / set|
High Selective Titanium Coating Flat Solar Collectors
Product Name: Flat Panel Solar Collector
Model No.: IL-FPC3
Application: Domestic & industrial hot water
Payment Terms: T/T, L/C
Outer Packing: Export Carton
2000*1060*70, 2000*1060*80, 2000*1060*90 (mm)
32kg / 33kg / 35kg accordingly
Tempered woven / low-iron tempered glass
Blue Tinox (Titanium-Nitride-Oxide )
Absorptivity ≥95%, emissivity ≤4%
All copper T2, δ=0.12mm
All copper T2, Φ22*0.6*1060mm, 2pcs
All copper T2, Φ10*0.5mm, 8pcs
Glass wool + high density polyurethane foam
30mm/ 40mm/ 50mm accordingly
Embossed aluminum back sheet 0.3mm
Metal elasticity proof, never aging
6.0 Bar ( Max 10 bar )
(-)35~180oC with anti-freeze liquid
Flat plate solar collector is a device that absorbs solar energy from the sun and converts it into usable heat energy, the heat is normally absorbed by water in the loop, or a freeze-resistant water mixture, a kind of medium used to supplement hot water heating or house air heating.
1. Suitable for domestic, dormitories, parks, hotels, schools, public showers, swimming pools, restaurants and other sites requiring for large hot water use
2. Flat plate solar collector presents a tube plate structure with a high efficiency, pressurized, insolation resistant, reliable quality with 15 years lifespan.
3. Suitable for open or closed Loop (glycol-water) active solar water heating system.
4. Flat plate is suggested to be used in non-frozen area, in frozen area, it is suggested to be used in active closed loop system with anti-freezing liquid for heat exchange.
5. Easy installation on slope or flat roof with little maintenance needed.
6. The high absorption: αs ≥ 92%, low emissivity: εh ≤ 10%, daily thermal efficiency ηd ≥ 55%
