Large solar water tank for solar hot water project

Large solar water tank for solar hot water project

Large solar water tank for solar hot water project
CategoriesSolar Water Tank(Solar Boiler)
AlbumView larger image
BrandInlightsolar
ModelINLT
TypeEvacuated Tube
PressureUnpressurized
Circulation TypeDirect / Open Loop (Active)
Heating SystemBatch / ICS (Passive)
Connection TypeSplit
InstallationFreestanding
Housing MaterialStainless Steel
CertificationSGS,GMC(TUV),ISO
Capacity10000
Outer shellSUS201-2B/SUS304-2B
Unit PriceUS $ 300-3000 / set
FOB portShanghai/Ningbo
Terms of PaymentWestern Union, T/T
Update Time2019-05-23
Detail Information

Specifications

Large solar water tank, Good sealing performance, Outstanding corrosion resistance,  designed for hot water storage in large-scale solar water heating project

Solar Hot Water Heating System

Technical Parameters



Inner Tank Material  Food-grade stainless steel SUS304-2B
 Capacity  0.5T ~ 15T
 Thickness0.5mm(0.5~1.5T), 0.6mm(2.0T~3.5T), 0.6mm(4.0T~6.0T),
0.8mm(7.0T~10.0T) 0.9mm(12T~15T)
Tank Shell Material  stainless steel SUS201-2B
 Thickness  0.5~0.6mm
Insulation Material  Imported polyurethane integrated foam-forming
 Thickness  50mm/70mm
Connector Water inlet & outlet, heater inlet, pump inlet & outlet, overflow outlet, drain outlet







Features description:

1. widely used for hot water storage in residential buildings, hotels, office buildings, schools, restaurants and other public facilities as well as places with requirements for large amount of hot water use

2.Long time preservation of hot water with little heat loss

3.Economical, anti-corrosion and anti-rusting

Large solar water tank for solar hot water projectLarge solar water tank for solar hot water projectLarge solar water tank for solar hot water projectLarge solar water tank for solar hot water projectLarge solar water tank for solar hot water project

Large solar water tank for solar hot water project

Large solar water tank for solar hot water project



------------------------------------------------------------------------------------------------------------------------------------------------------------------

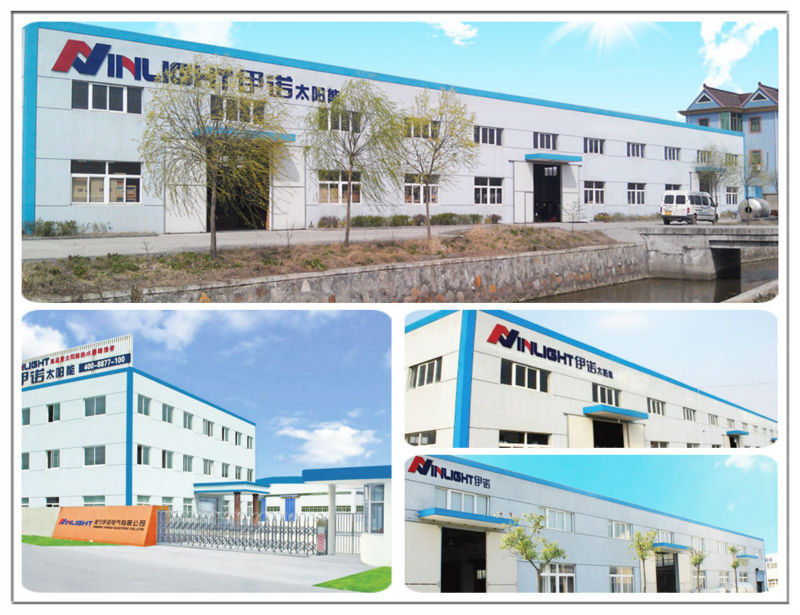

4. About us

Since 1995 Haining Yinuo Electric Company has dedicated itself to saving global resources by supplying the world with superior solar water heating systems.

Its solar water heaters and solar collectors are certified with Solar Keymark EN12975, SRCC OG-100, CE and ISO and have a quality reputation throughout China, East Europe, South America, South Africa and many Middle-East countries. It produces 48,000 solar water heaters and installs 2,700 largescale industrial solar water heating systems per year, 60% of which are exported to overseas markets.

You are welcome to surf around HAINING YINUO Company's website, compare our products, and ask us questions, we are just a click away from you.
