Solar Water Heater Solar Pump Station

Solar Water Heater Solar Pump Station

Solar Water Heater Solar Pump Station
CategoriesSolar Pump Station
AlbumView larger image
BrandInlightsolar
ModelSP106
TypeSolar Water Heater Parts
Rated Voltage220V
ApplicationSolar Working Station
Unit PriceUS $ 200-250 / set
Update Time2019-03-26
Detail Information

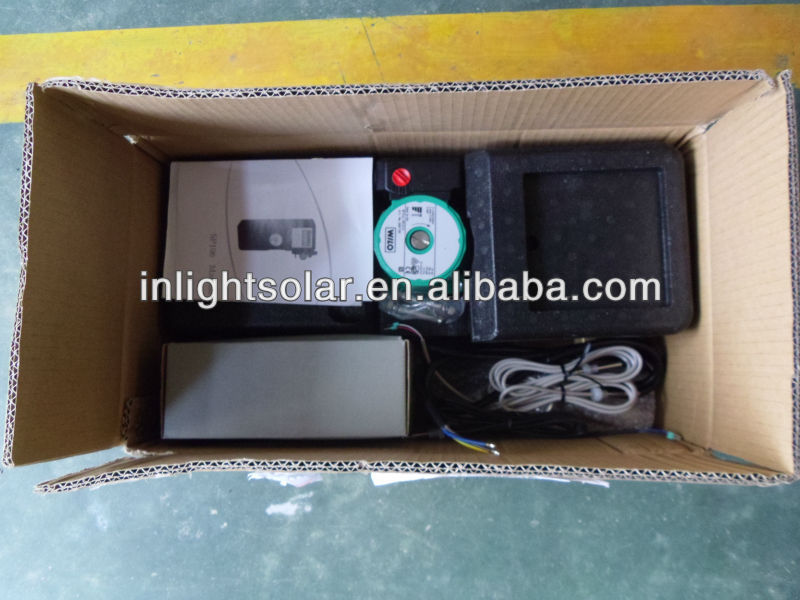

Solar Pump Station

Main technical data:

1. Dimension: 465×165×113mm
2. Input voltage: 200V~240V AC or 100V~120V AC
3. Power: ≤3W
4. Accuracy of temperature measuring: ±1°C
5. Range of temperature measuring: 0~99°C

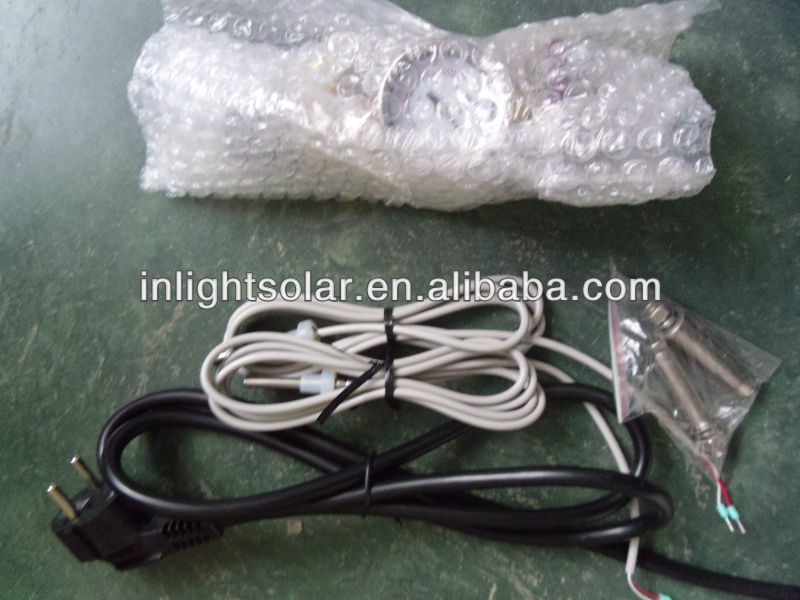

6. Input signals:
       1 x PT1000 sensor temperature probe ≤500°C, silicon cable ≤280°C;
       2 x NTC10K sensor temperature probe≤135°C, PVC cable ≤105°C
7. Output signals:
       1 x Auxiliary heating output (Max. load current: 12A)
       2 x Relay output (Max. load current: 1.5)
8. System design pressure: 1 MPa
9. Safety valve respond pressure: 0.6 MPa
10. WILO pump model: RS15/6
11. Screw coupling: 1/2 "
12. Pipeline Material: Brass
13.Range of environment temperature: -10~50°C
14.Water protection grade: IP40


Main functions:

1. Time display
2. Temperature difference circulation
3. Tank overheating protection
4. Emergent stop of system overheating
5. Frost protection of pipeline and collector
6. Three periods of time adjustable on pipeline circulation
7. Three periods of time adjustable on auxiliary heating
8. Three speed levels on circulation pump
9. Adjust flow rate
10. Display system pressure
